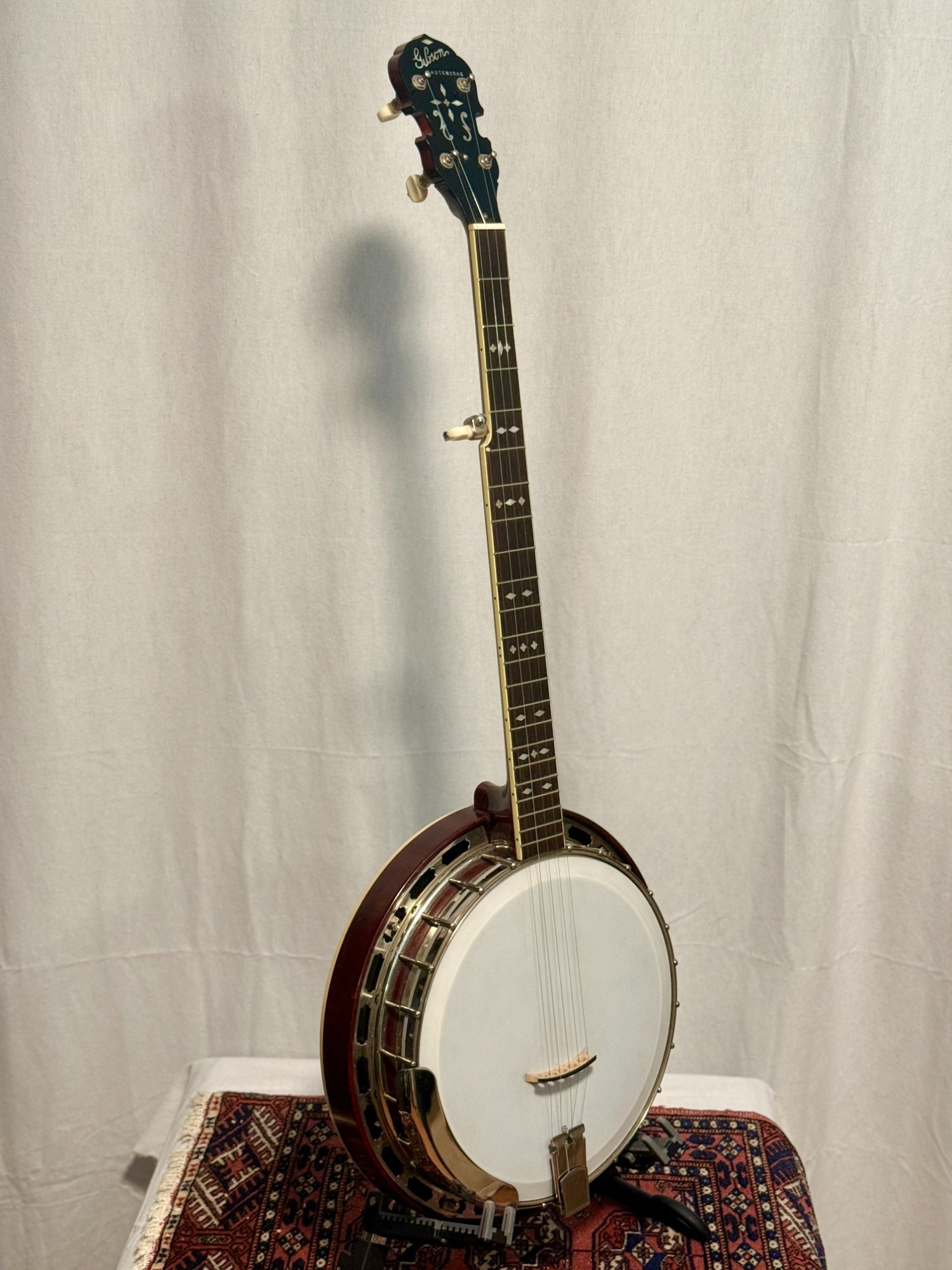

1926 Gibson TB-3 Ball-Bearing Conversion Banjo with Frank Neat Neck

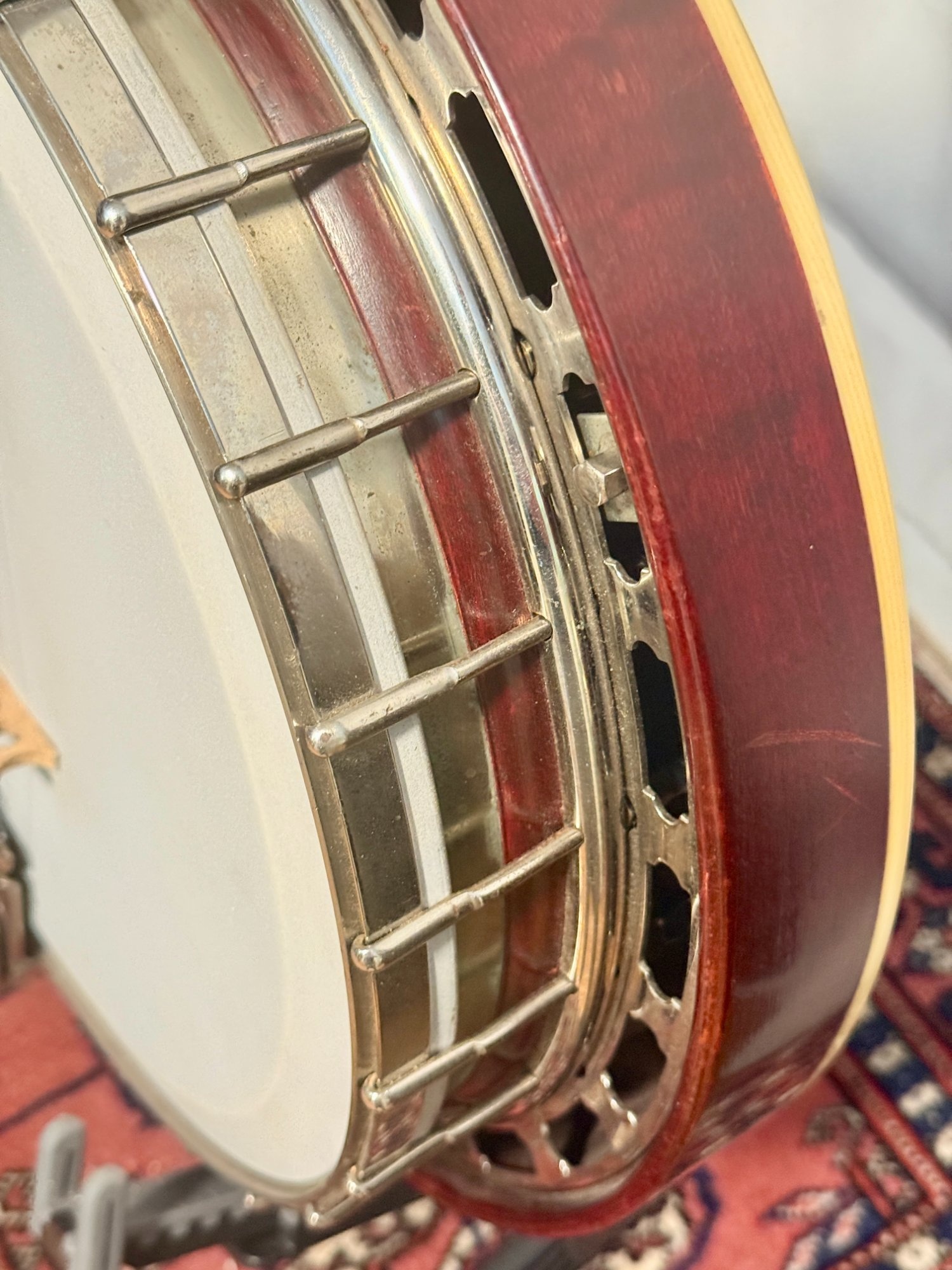

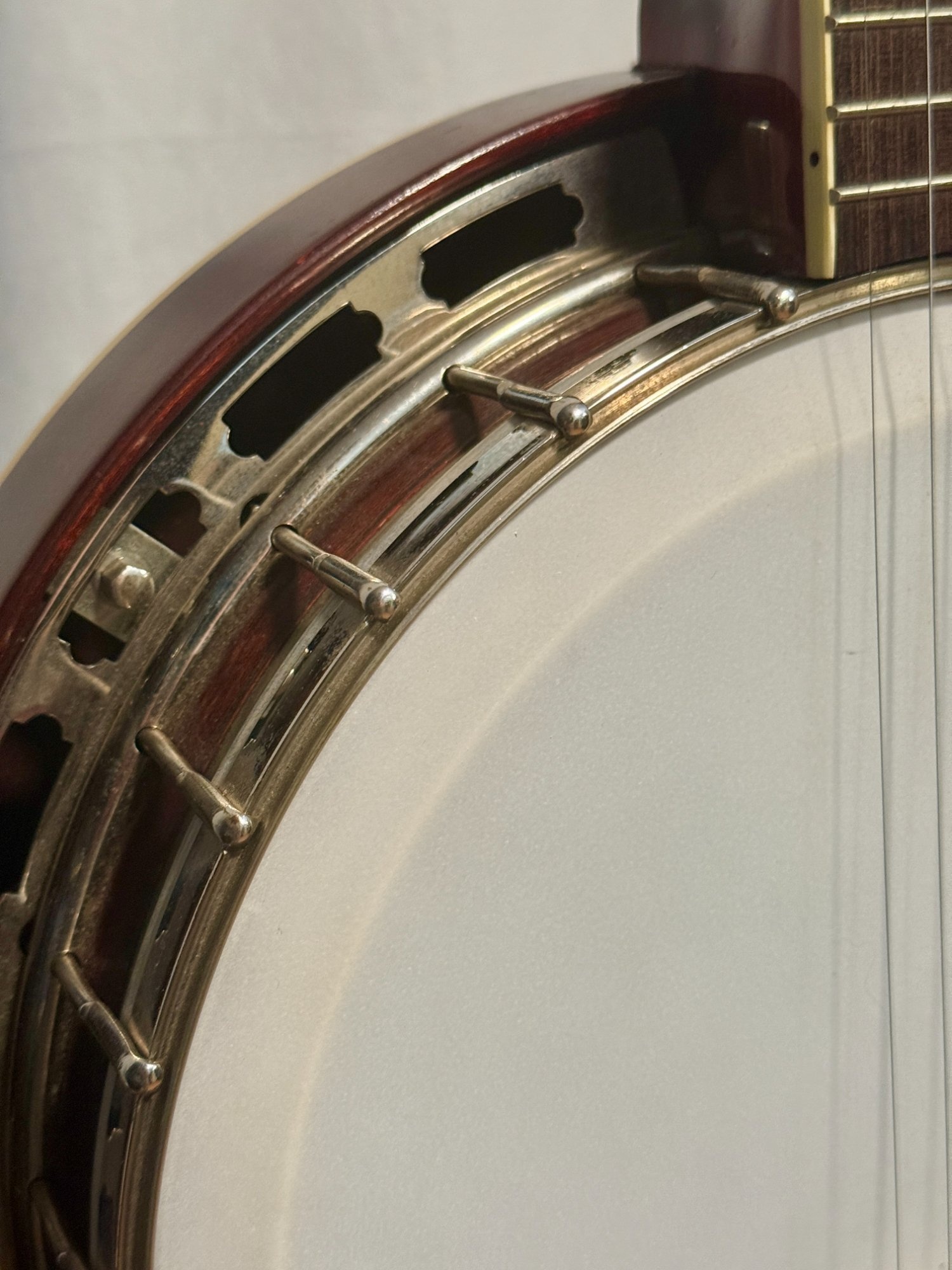

This 1926 Gibson TB-3 ball-bearing conversion came to us from a player in Colombia and remains in excellent condition. The pot assembly is completely unaltered — original ball-bearing tone ring, three-ply hard rock maple rim, two-piece flange, grooved tension hoop with flat hooks, and nickel hardware throughout.

The Ball-Bearing Tone Ring

Gibson introduced the ball-bearing tone ring in 1925 as their most ambitious design. Each pot required 24 springs, 48 washers, 24 ball bearings, a drilled rim, a tube with holes welded to an archtop hoop, a spacer, and a brass skirt — over 100 individual parts that had to be hand-finished and assembled. The tone ring floats on the ball bearings, allowing it to vibrate freely with the head rather than being dampened by contact with the wood rim.

Gibson abandoned the system by early 1927, moving to simpler one-piece cast tone rings. But these ball-bearing banjos have developed a devoted following among players who prize their distinctive prewar voice — warm, complex, and surprisingly responsive. As one player on the Banjo Hangout put it: “The sweet spots are more pronounced than with cast archtop designs. You can actually feel the head vibrating while playing.”

The 1926 models are particularly sought after because drop-in conversion rings are available (unlike the 1925 version with its shotgun skirt), giving owners the option to install a flathead ring while preserving all original parts. This banjo retains its original ball-bearing setup and sounds fantastic as-is.

Frank Neat 5-String Conversion Neck

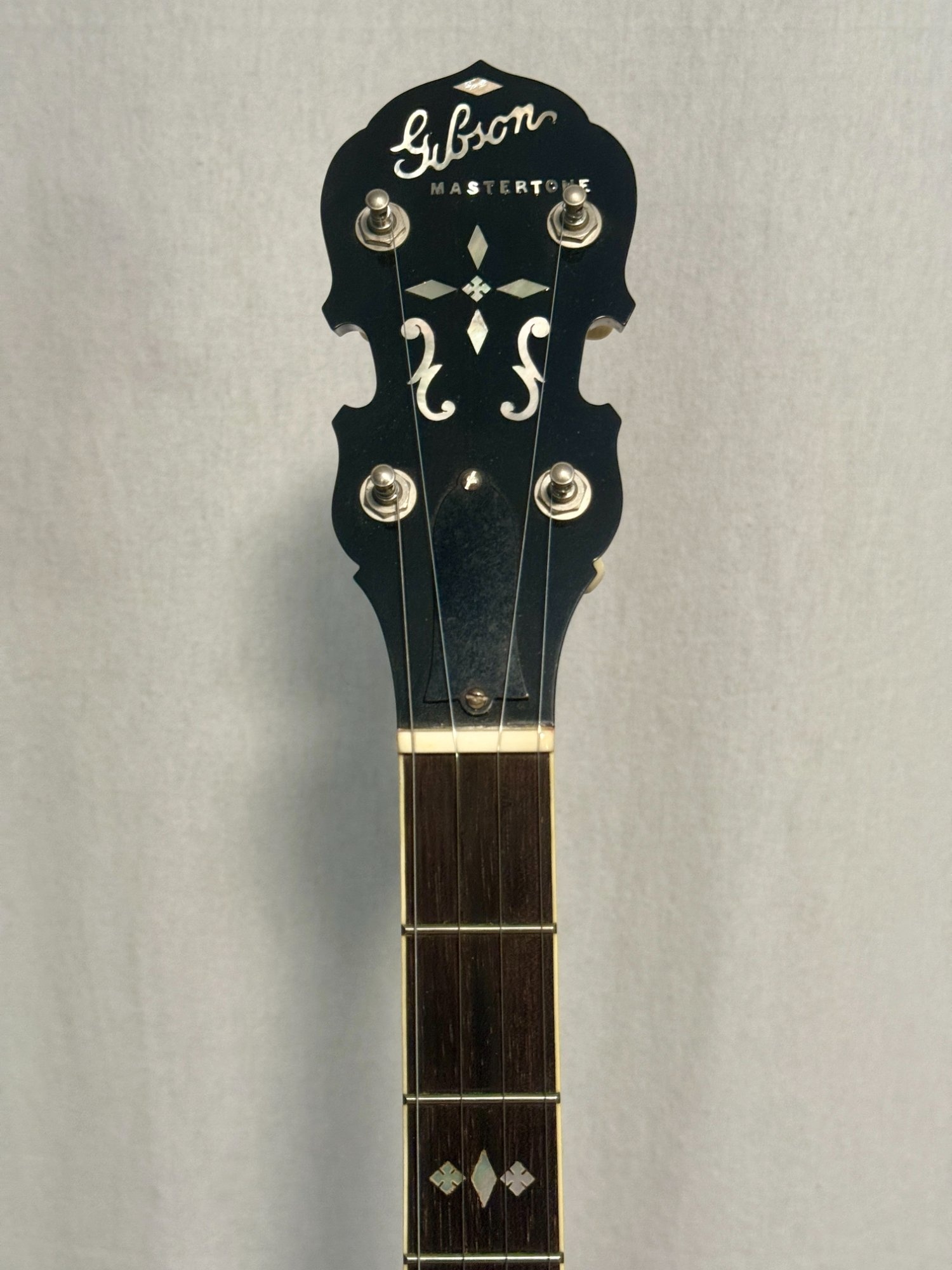

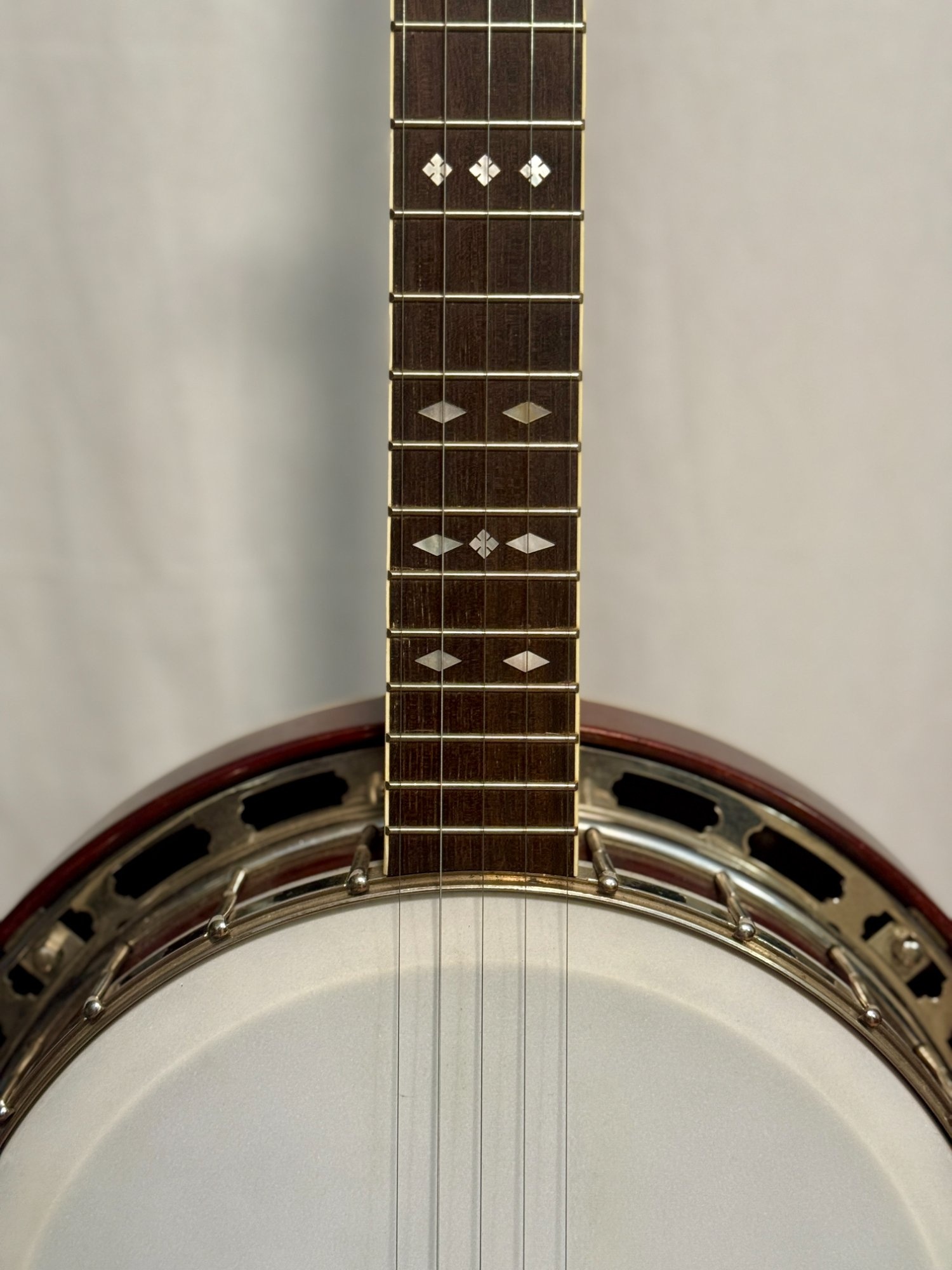

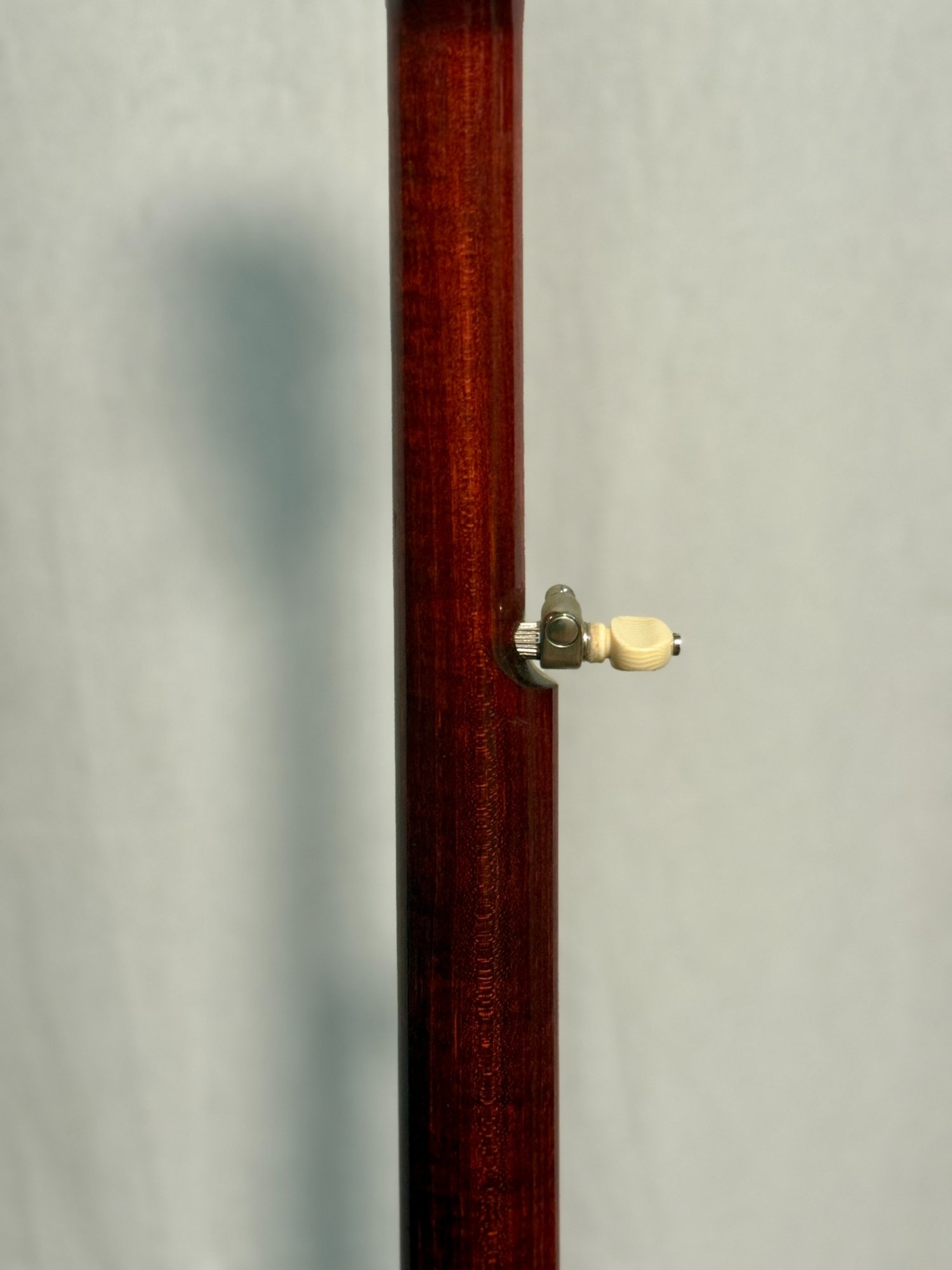

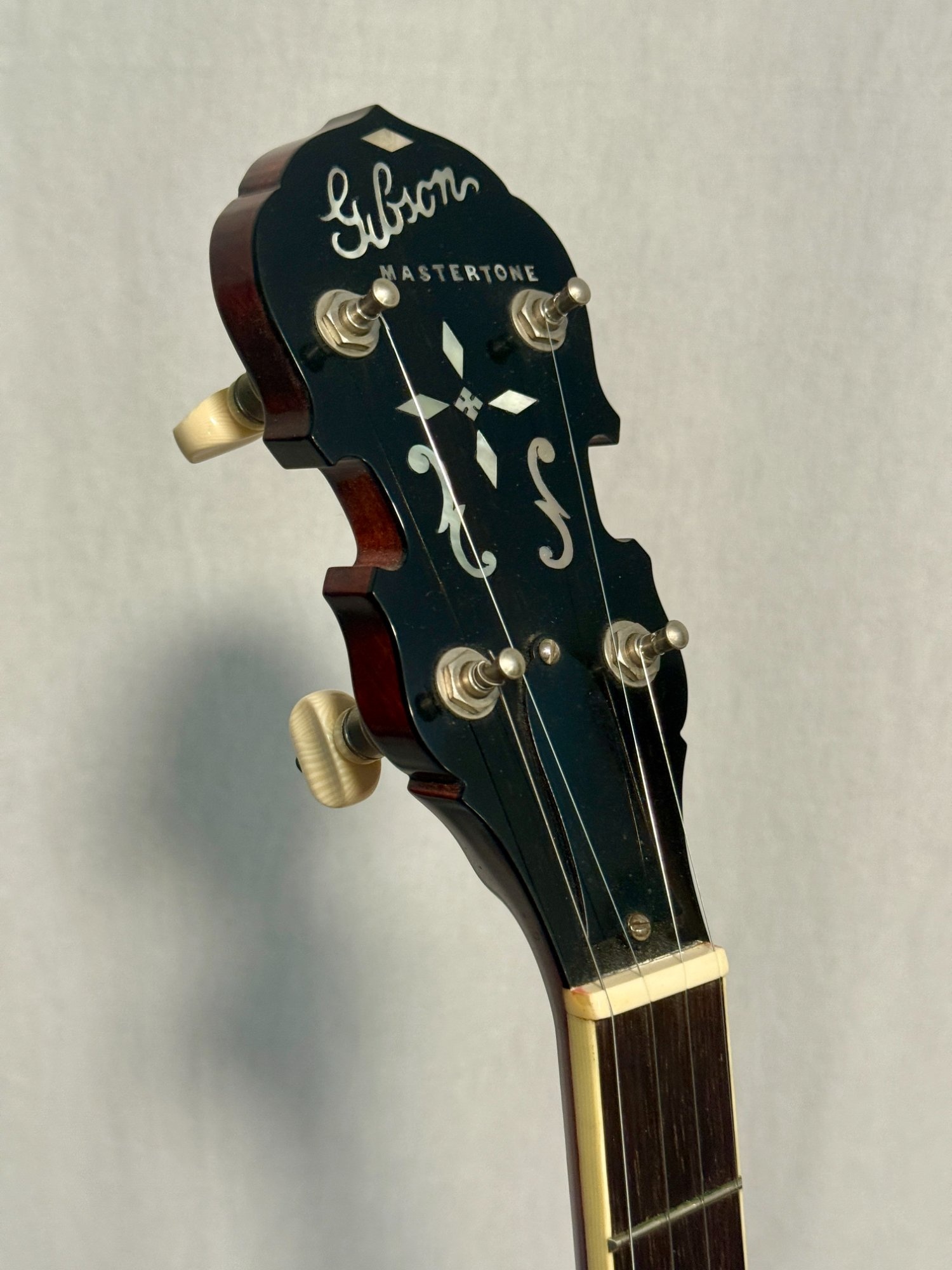

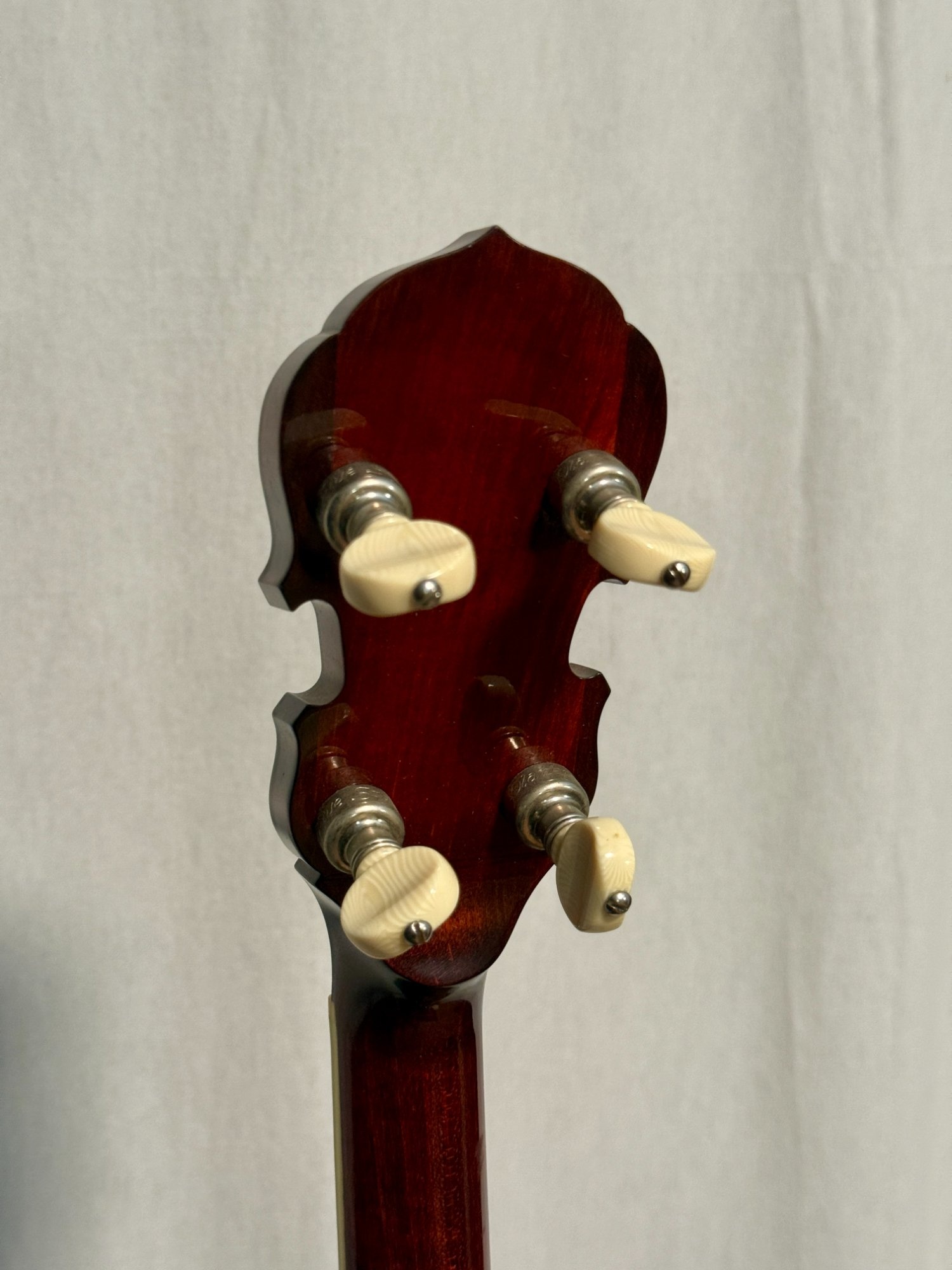

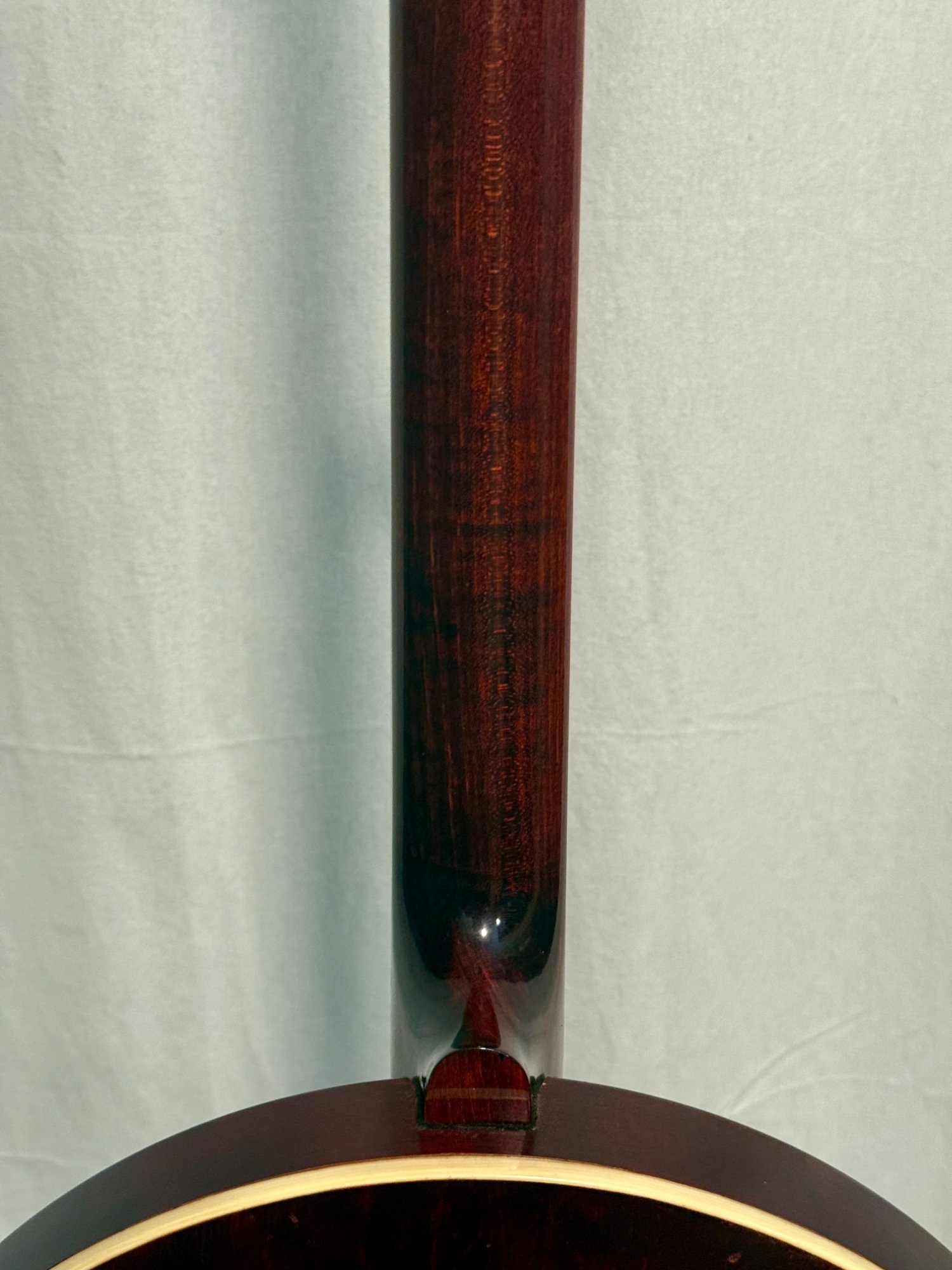

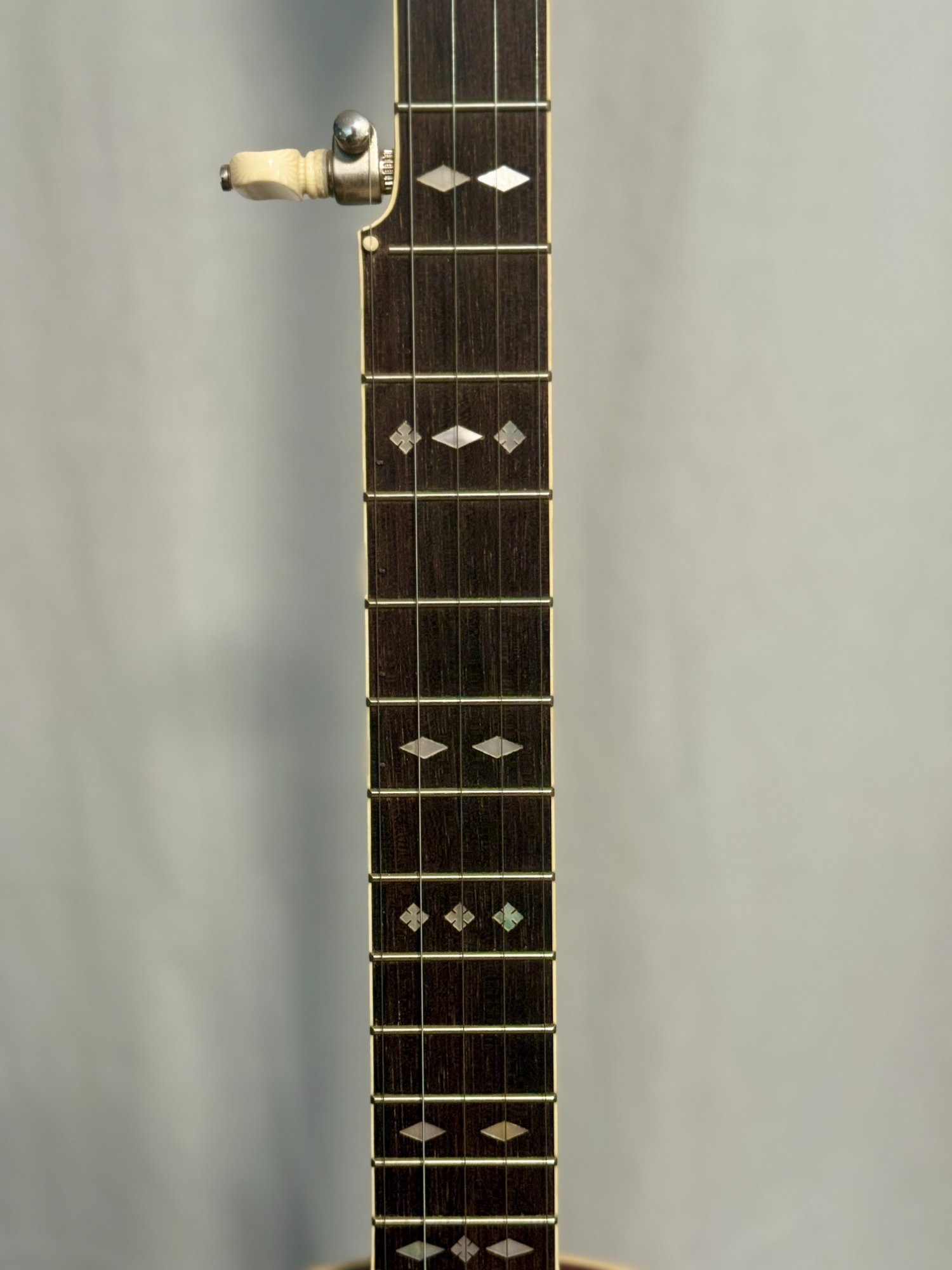

The original tenor neck has been replaced with a professional 5-string conversion neck by Frank Neat. Straight-grained maple construction matches the resonator beautifully. The rosewood fingerboard features the classic diamonds and squares pearl inlay pattern, and the fiddle-shaped peghead carries the Gibson Mastertone pearl logo. Planetary tuners with ivoroid buttons.

Original Components

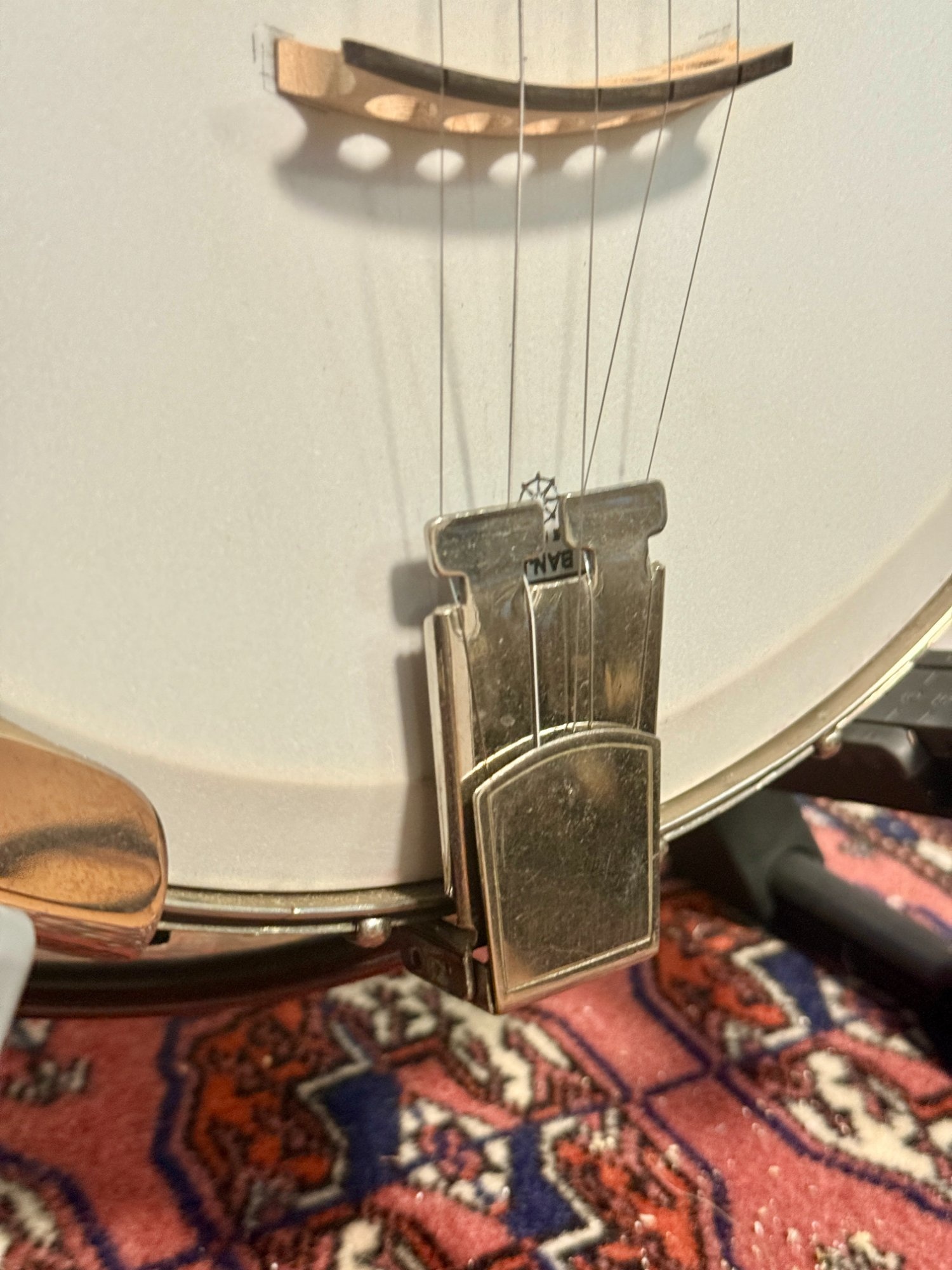

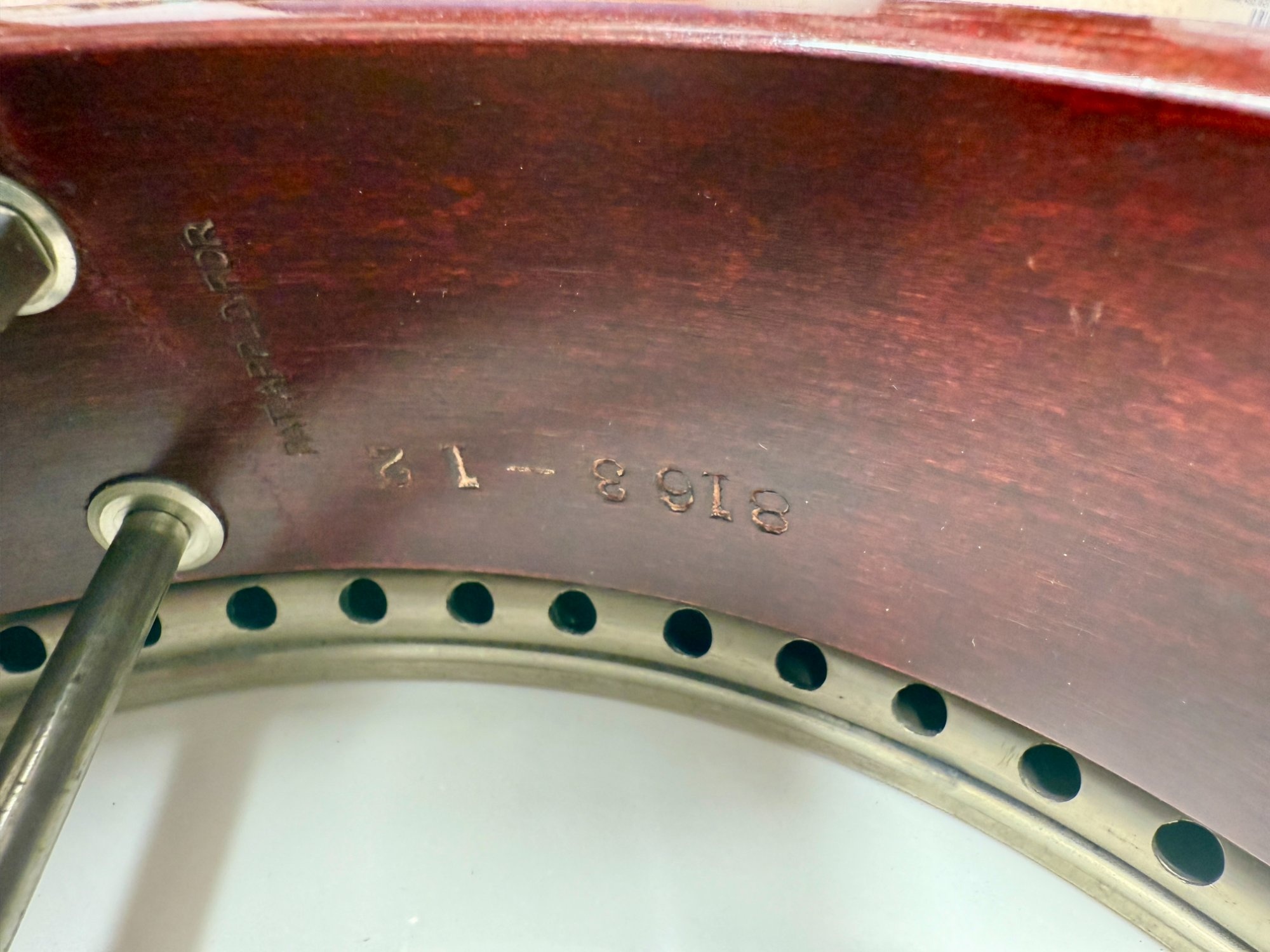

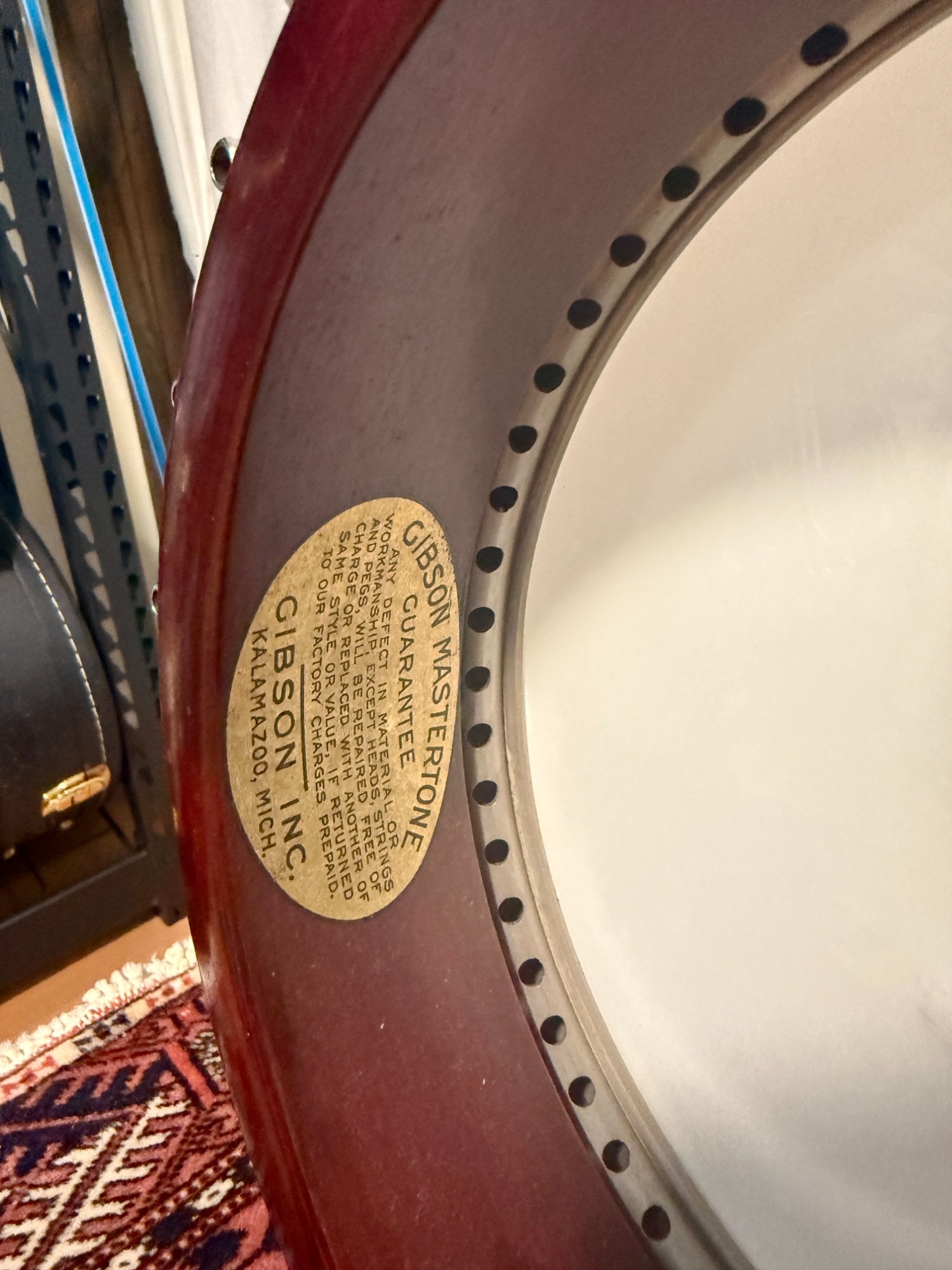

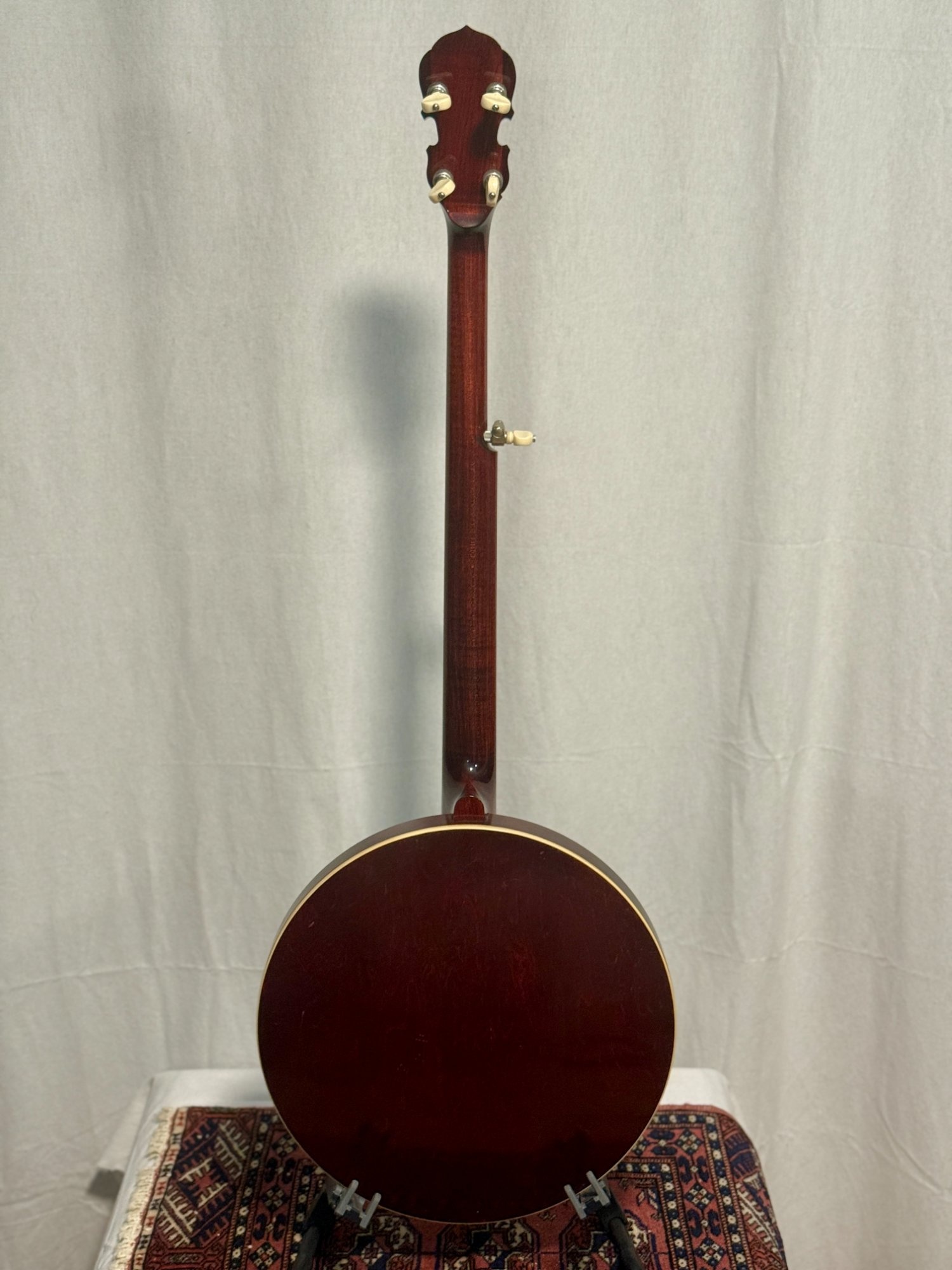

Everything else is original 1926: the maple resonator with cream binding, Mastertone guarantee label from Gibson Inc. Kalamazoo Michigan, Presto tailpiece, and all nickel-plated hardware. Serial number 8168-12 is stamped on the rim and penciled inside the resonator back.

Specifications

Year	1926
Model	Gibson TB-3 Mastertone (5-string conversion)
Serial Number	8168-12
Tone Ring	Original Gibson ball-bearing
Rim	Three-ply hard rock maple
Neck	Frank Neat maple 5-string conversion
Fingerboard	Rosewood with diamonds and squares inlay
Peghead	Fiddle shape with Gibson Mastertone inlay
Resonator	Maple with cream binding (original)
Flange	Two-piece nickel (original)
Tension Hoop	Grooved with flat hooks (original)
Tailpiece	Presto (original)
Tuners	Planetary with ivoroid buttons
Hardware	Nickel
Condition	Excellent
Case	Functional modern hardshell case included

Related Questions

What is a ball-bearing tone ring?

Gibson’s ball-bearing tone ring (1925-1927) used springs, washers, and ball bearings to suspend the tone ring above the wooden rim, allowing it to vibrate freely with the head. This produced a warm, complex tone distinct from later cast archtop and flathead designs. Learn more about vintage Gibson banjos in our collection.

What is a conversion banjo?

A conversion banjo starts as a tenor (4-string) or plectrum instrument and receives a new 5-string neck for bluegrass playing. Prewar Gibson pots are prized for their tone, making conversions an affordable way to own a professional-grade vintage instrument. Browse our Gibson banjos to see other examples.

Who is Frank Neat?

Frank Neat is a master luthier in Kentucky known for building high-quality conversion necks and complete banjos. His necks are sought after for their craftsmanship and playability, making them a popular choice for upgrading vintage Gibson pots.
